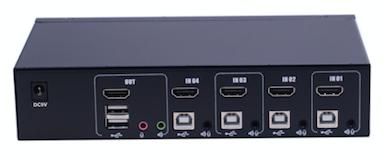

AS-41HA (HDMI KVM Switch, 4ports，Single-monitor）

•

contact

As a KVM switch 4 ports with HDMI interface allows users to access from a single USB keyboard, mouse and HDMI the display console accesses 4 computers. Desktop compact design, metal casing, easy to install and place; provide users with a variety of fast switching options for audio, video, USB devices, saving desktop space, is a multimedia application such as SOHO office Ideal.

● 4 Port HDMI USB2.0 KVM Switch with audio;
● Single USB console control 4 HDMI interface computer and two additional USB device;
● 2 ports USB hub 2.0 built in; fully compliant USB 2.0 specification;
● HDMI video resolution in Max: 4K@30fp4K @30HZ (3840*2610 @30HZ);
● Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys;
● HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
● Dolby True HD and DTS HD Master Audio support
● Multiplatform support;
● BIOS hardware connection, no need drive program and control software;
● USB extension port in front of device, which is convenience for keyboard, mouse, flash and printer peripheral devices connection;
● Provide multi-types of hotkeys setting and choosing function, convenience for users to set hotkey freely;
● Auto-scan functions;
● Attached HDMI+USB cable 4 pcs

Function				AS-41HA
Computer Connection				4
Port Selection				OSD Menu, Front panel switches, Hot Key
Connector	Console Connector		Monitor	1 x HDMA Type A Female Black
			Keyboard	1 x USB Type A Female
			Mouse	1 x USB Type A Female
			Speaker	1x Mini Stereo jack Female Green
			Microphone	1x Mini Stereo jack Female Pink
	PC Connector		Monitor	4 x HDMI Type A Female Black
			Mouse/Keyboard	4 x USB Type B Female White
			Speaker&Microphone	4 x Mini Stereo jack Female Black
	Power Supply			1 x DC Jack
Connection Port Selection	KVM Switch Reset			4*KVM Operation Panel Function Keys
LED Instruction	Online			4 x Red
	Selected			4 x Green
Simulation Method	Keyboard/Mouse			USB
Max Resolution Video				4K @30HZ (3840*2610 @30HZ)
Switch Hotkeys				CTL+CTL
Operating Environment		Operating temperature		0-50℃
		Storage temperature		-20-60℃
		Humidity		0~80%RH No Condensation
Physical Properties		Housing		metal
		Dimensions(L x W x H )		20211044mm
		Weight（kgs）		0.85
