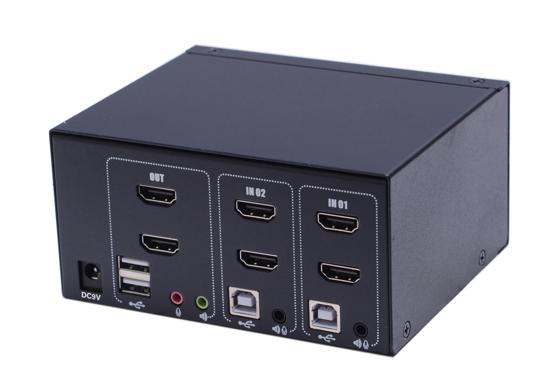

AS-22HA（HDMI KVM Switch, 2ports，Dual-Monitor）

•

contact

As a KVM switch 2ports with HDMI interface allows users to access from a single USB keyboard, mouse and HDMI the display console accesses 2 computers. Desktop compact design, metal casing, easy to install and place; provide users with a variety of fast switching options for audio, video, USB devices, saving desktop space, is a multimedia application such as SOHO office Ideal.

● 2ways HDMI input; 2 HDMI ways output;
● 2Port HDMI USB2.0 KVM Switch with audio;
● One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
● 2 ports USB hub 2.0 built in; fully compliant USB 2.0 specification;
● HDMI video resolution in Max:4K@30HZ(3840x2610@30HZ);
● Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys;
● HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
● Dolby True HD and DTS HD Master Audio support
● Multiplatform support;
● BIOS hardware connection, no need drive program and control software;
● USB extension port in front of device, which is convenience for keyboard, mouse, flash and printer peripheral devices connection;
● Provide multi-types of hotkeys setting and choosing function, convenience for users to set hotkey freely;
● Auto-scan functions;
● Attached HDMI+USB cable 2pcs

Function			AS-22HA
Computer Connection			2
Port Selection			Front Panel Buttons, Hot Key
Connector	Console Connector	Monitor	2 x HDMA Type A Female Black
		Keyboard	1 x USB Type A Female
		Mouse	1 x USB Type A Female
		Audio	1 x Speaker -3.5mm Socket Green 1 x MIC-3.5mm Socket Pink
	PC Connector	Monitor	4 x HDMI Type A Female Black
		Mouse /Keyboard	2 x USB Type B Female White
		Audio	2 x 3.5mm Audio integration Socket Black
	Power Supply		1 x DC Jack
Connection Port Selection	KVM Switch Reset		2*KVM Operation Panel Function Keys
LED Instruction	Online		2 x Red
	Selected		2 x GREEN
Simulation Method	Keyboard/Mouse		USB
Max Resolution Video			4K@30HZ(3840x2610@30HZ)
Operating Environment	Operating Temperature		0-50℃
	Storage Temperature		-20-60℃
	Humidity		0~80%RH No Condensation
Physical Properties	Housing		Metal
	Dimensions(L x W x H )		1329266mm
	Weight(kgs)		0.6
