AS-21HA (HDMI KVM Switch 2 ports）-4k@30hz-Beijing Lanbao Tianhe Technology Co., Ltd

All products

AS-21HA (HDMI KVM Switch 2 ports）

•

contact

As a KVM switch 2 ports with HDMI interface allows users to access from a single USB keyboard, mouse and HDMI the display console accesses 2 computers. Desktop compact design, metal casing, easy to install and place; provide users with a variety of fast switching options for audio, video, USB devices, saving desktop space, is a multimedia application such as SOHO office Ideal.

● 2 Port HDMI USB2.0 KVM Switch with audio;
● Single USB console control 2 HDMI interface computer and two additional USB device;
● 2 ports USB hub 2.0 built in; fully compliant USB 2.0 specification;
● HDMI video resolution in Max: 4K@30fp4K @30HZ (3840*2610 @30HZ);
● Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys;
● HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
● Dolby True HD and DTS HD Master Audio support
● Multiplatform support;
● BIOS hardware connection, no need drive program and control software;
● USB extension port in front of device, which is convenience for keyboard, mouse, flash and printer peripheral devices connection;
● Provide multi-types of hotkeys setting and choosing function, convenience for users to set hotkey freely;
● Auto-scan functions;

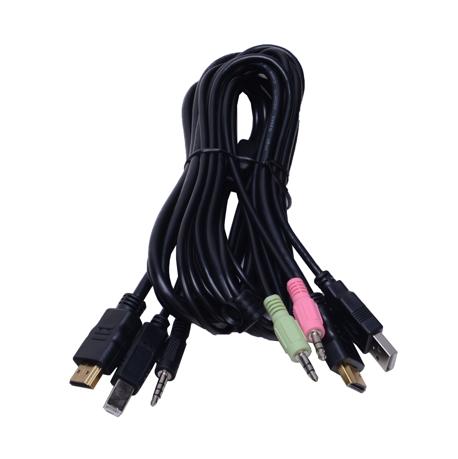

● Attached HDMI+USB cable 2 pcs

Function			AS-21HA
Computer Connection			2
Port Selection			OSD Menu, Front panel switches, Hot Key
Connector	Console Connector	Monitor	1 x HDMA Type A Female Black
		Keyboard	1 x USB Type A Female
		Mouse	1 x USB Type A Female
		Speaker	1x Mini Stereo jack Female Green
		Microphone	1x Mini Stereo jack Female Pink
	PC Connector	Monitor	2 x HDMI Type A Female black
		Mouse/Keyboard	2 x USB Type B Female white
		Speaker&Microphone	2x Mini Stereo jack Female Black
	Power Supply		1 x DC Jack
Connection Port Selection	KVM Switch Reset		2*KVM Operation Panel Function Keys
LED Instruction	Online		2 x Red
	Selected		2 x Green
Simulation Method	Keyboard/Mouse		USB
Max Resolution Video			4K @30HZ (3840*2610 @30HZ)
Switch Hotkeys			CTL+CTL
Operating Environment	Operating temperature		0-50℃
	Storage temperature		-20-60℃
	Humidity		0~80%RH No Condensation
Physical Properties	Housing		metal
	Dimensions(L x W x H )		1329244mm
	Weight（kgs）		0.6

file version CN/EN Date download

AS-21HA (HDMI KVM Switch 2 ports）
