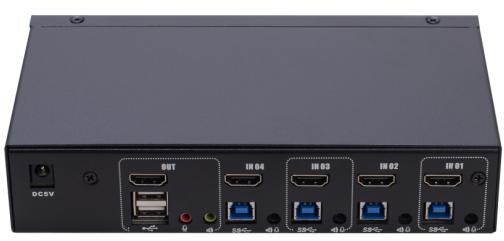

AS-41HUS (HDMI KVM Switch,4ports,Single-View）

•

contact

As a KVM switch 4 ports with HDMI interface allows users to access from a single USB keyboard, mouse and HDMI the display console accesses 4 computers. Desktop compact design, metal casing, easy to install and place; provide users with a variety of fast switching options for audio, video, USB devices, saving desktop space, is a multimedia application such as SOHO office Ideal.

● 4 port USB3.0 multiple video series KVM switch
● Single USB controls 4 sets of computers and peripherals USB
● Built-in USB3.0 , compatible with USB protocol specification
● HDMI video maximum support resolution is 4K@ 60fp
● Provide keyboard hot-key switching shortcut function and device panel button two switching function selection
● Support multiple platforms for various operating systems
● BIOS level hardware connection, no need to install drivers and control software
● The front panel of the device is extended with a USB interface, which is convenient for users to connect peripheral devices such as a USB keyboard, a mouse, or a USB flash drive or a USB printer .
● Provide a variety of hot-key selection and setting functions, so that users can set their own hot-keys according to the situation.
● Automatically scans the connected computer
● Attached HDMI+USB+AUDIO Cable 4pcs in 1.8m

Features				AS-41HUS
Computer connections				4
Port selection				Front panel buttons/Hot-key
Connector	Control port		monitor	1 x HDMI Type A black Female
			keyboard	1 x USB Type A female
			mouse	1 x USB Type A female
			speaker	1 x Mini stereo jack female(green)
			microphone	1 x Mini stereo jack female(pink)
			USB3.0	2 x USB3.0 Type A Blue Female
	Computer port		monitor	4 x HDMI Type A female (black)
			keyboard and mouse	4 x USB Type B female (white)
			speaker & microphone	4 x Mini stereo jack female (black)
	power			1 x DC socket
Toggle switch	KVM switch button			4 x button
LED’s	online			4 x red
	Selected			4 x green
Analog mode	Keyboard and mouse			USB
Maximum resolution video				4K@60HZ(3840x2160 @60HZ)
Hot-key				CTL+CTL
Operating environment		Operating temperature		0-50 °C
		Storage temperature		-20-60 °C
		Humidity		0-80% RH , no condensation
Housing		House		metal
		Size		202 x 110 x 44mm
		Weight		0.78Kg
