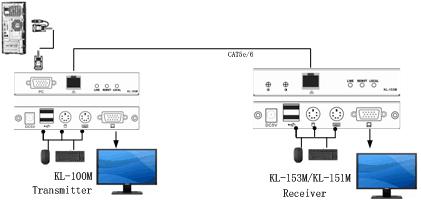

KVM Extender transmits kvm up to 100m away from a computer using CAT5/5e/6cable. Each KVM extender consists of a local unit and remote unit, both support monitor, keyboard and mouse, with gain adjustment function for video.
The scope of products:
LCD and plasma flat-panel display advertising project
Large screen LCD screen display projects
Large projection equipment demonstration system
Industrial automation control system
Large and medium audio and video conferencing systems
Medical care display system
Bank, securities, financial system
Security VGA area monitoring system
Multimedia network teaching system
Long distance KVM extender, switcher
Remote network server monitoring
Large and medium - sized central control system
Military exercise command system
Transmitter：
|
Model No. |
KL-100M
|
|
|
Switch between remote and local keyboard and mouse functions |
F12 hot-key switch |
|
|
Console |
Keyboard |
1 x PS/2, 1 x USB Female |
|
Mouse |
1 x PS/2, 1 x USB Female |
|
|
Display |
1 x HDB-15 Female(Blue) |
|
|
Sender |
1 x RJ-45 |
|
|
Status Indicator |
3 |
|
|
Video Resolution |
1920 x 1080 |
|
|
Standard power supply |
DC5V 2000mA |
|
|
Operating temperature |
0˚C~50˚C |
|
|
Storage temperature |
-20˚C~60˚C |
|
|
Case |
Metal |
|
|
Weight |
580g |
|
|
Size( length x width x height ) |
125mm*74mm*23mm |
|

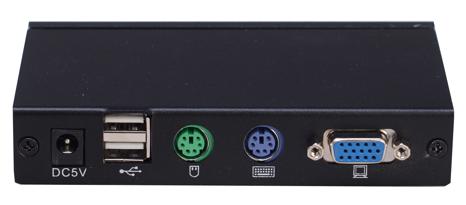

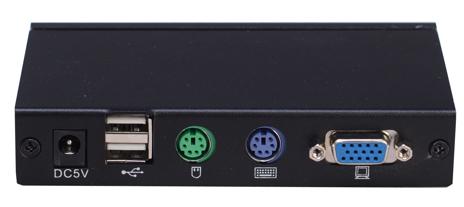

Receiver:
|
Model No. |
KL-151M |
|
|
Connector |
Keyboard&Mouse |
PS/2,USB |
|
Display |
1 x HDB-15 Female(Blue) |
|
|
CAT5 |
RJ45 |
|
|
Video adjustment |
No |
|
|
Video |
Signal Type |
VGA signal |
|
Minimum input level |
0.5Vp-p |
|
|
Maximum input level |
1.0Vp-p |
|
|
I/O impedance |
75Ω |
|
|
Best resolution |
1280*1024 |
|
|
Line frequency |
30-100KHz |
|
|
Field frequency |
60Hz |
|
|
Spec |
Distance |
MAX 100M |
|
power supply |
DC5V 2000mA |
|
|
Storage temperature |
-20˚C~60˚C |
|
|
Operation temperature |
0˚C~50˚C |
|
|
Size |
125mm*74mm*23mm |
|
|
Weight |
600g |
|
|
Color |
Black |
|
|
Case |
Metal |
|
Transmission Distance:
|
Cable |
Distance (m) |
Resolution（60Hz） |
|
CAT5/5e-CAT6 |
0-50 |
1920*1080 |
|
50-100 |
1280*1024 |
