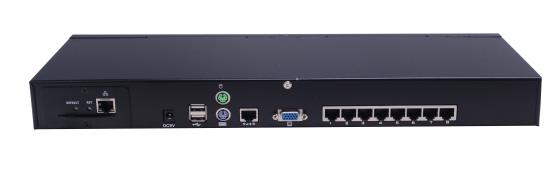

KS-3108 (CAT5 Rack-Mountable KVM Switch, 8ports; One local user + One remote user )


KVM
● Control 8 computers with local or remote console.
● Both the console and the computer are compatible with PS/2 / USB mouse and keyboard.
● Computer selection via front panel switches and OSD.
● LED’s display for easy status monitoring.
● Auto Scan Mode for monitoring all computers.
● Superior video quality.
● Easy installation – no software required
● Hot plug gable – add or remove computers for maintenance without powering down the switch
● Supports Windows, Linux, Solaris, etc.

IP features
● KI-4101 is a IP optional way for LCD KVM Console and Rack Mountable KVM;
● Our products adopt KVM over IP technology and make full use of existing Ethernet network to replace dependence of special cables and signal systems.
● Expedient bandwidth control, can make adjustments of frame rate and code rate for video transmission to adapt to different network bandwidth, fully guarantee the transmission quality of the image.
● Based on IP connection eliminates the distance analog KVM system and other restrictions, And therefore achieve flexible centralized management.
● Because digital KVM signaling is based on IP agreement, the network administrator can use client applications to access in data center or anywhere in the world using one computer to control servers and other devices. It means can be added or change any number of users and devices without any complex reconfiguration.
● Client-side soft can fully make use of IP technology to provide rich administrative control which including process sharing、server status monitor、simulate multi-platform keyboard and centralized records.
● Multiple permissions setting to meet the use and operation of different users.
● Through the video transmission and data encryption of keyboard and mouse to make sure the safety of network transport.
● BIOS level connection is no limited by operating system, and applicable to various server, PC system and operating system.
● Absolute synchronistical technologies of mouse to ensure the operating accuracy of window.
● Support remote key combination to send.
● 10M、100M、1000M network transmission.
● Remote resolution can reach to 1920x1080@60HZ. Support screen zoom function with arbitrary proportion.
● Base on WEB UI, convenient for customer to access under different operation system.
Support remote online update.


KVM

Type

8 Port

Model

KS-3108

Computer Connection

Direct Connects

8

Maximum Connects

128

CPU Port Selection

OSD Menu, Front panel buttons, Hot Key, IP Remote Control (Optional)







Connectors

Console Connector

Monitor

1xHDB Female(Blue)

Keyboard

1xPS/2 Female(Purple)               1 x USB Type A Female

Mouse

1xPS/2 Female(Green)                1 x USB Type A Female

Expansion Interface

1 x USB Type A Female (Front expansion Keyboard, Mouse Interface)

PC Connector

Monitor, Keyboard/Mouse Switch Module

8 x VGA DB15 Female Blue, 8 x USB

8 x DVI, 8 x USB

8 x HDMI, 8 x USB



Switch Module Port

8 x RJ45

Power

1 x DC Jack

Network Port

1 x RJ45(Optional)

Key Switch

Connection Port Selection

KVM Operation Panel Digital keys

KVM Reset

1 x semi-embedded keys

IP Module Reset

1 x semi-embedded key

IP Module Default

1 x semi-embedded key

LED’s

Selected

8 x Green

Online

8 x Red

IP Network

1 x Green, 1 x Orange

Analog Mode

Keyboard/Mouse

USB, PS/2

Resolution (Max)

1920 x 1200 @ 60HZ Local & Remote

Scan time interval

3, 5, 10, 15, 20, 30, 40, 60s (3s by default)

Operating Environment

Operating temperature

-10-50˚C

Storage temperature

-20-60˚C

Humidity

0-80%RH, No Condensation


Physical Properties

Housing

Metal

Size

432 x 155 x 44 mm

Weight

1.82KG


IP Card


Product number

KI-4101



Control Port

Keyboard



RJ45 port x 1

Mouse

Video



Input Port

Keyboard

HD15F/integration port x 1

(VGA videoUSB mouse/keyboard, PS/2mouse/keyboard)

Mouse

Video

Power Supply Port

DC-5.5*2.1

Reset

Network Re-connect

Default

Initialize IP module default IP address, administrator name and initial password

LED Indicator

Power indicator

Max Resolution

1920 x 1080@60Hz

Power Supply

DC 12V  1000mA

Operating Temperature

0-50˚C

Storage Temperature

-20℃-60℃

Housing

metal

Weight

0.5KG

Dimensions(L x W x H )

162*78*30mm
