AS-42DPA (4 ports Display Port KVM switch, Dual-monitor)

•

contact

● 4 ways DP input; 2 DP ways output;
● 4 Port DP USB2.0 KVM Switch with audio;
● One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
● 4 ports USB hub 2.0 built in; fully compliant USB 2.0 specification;
● Display port video resolution in Max:4K@60HZ(3840x2610@60HZ);
● Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys;
● Display port monitor support - fully compliant with Display port;
● Dolby True HD and DTS HD Master Audio support
● Multiplatform support;
● BIOS hardware connection, no need drive program and control software;
● USB extension port in front of device, which is convenience for keyboard, mouse, flash and printer peripheral devices connection;
● Provide multi-types of hotkeys setting and choosing function, convenience for users to set hotkey freely;
● Auto-scan functions;

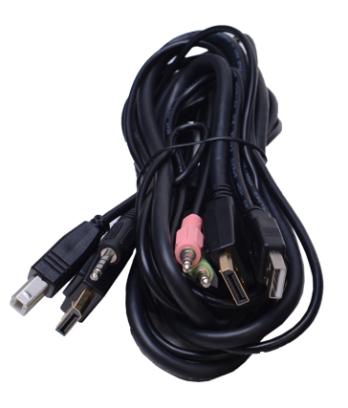

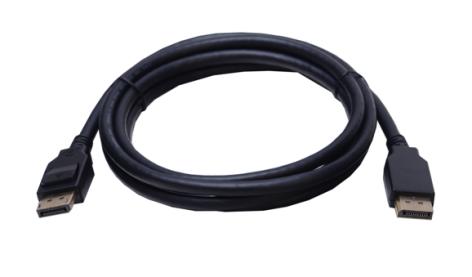

● Attached DP+USB cable 4 pcs

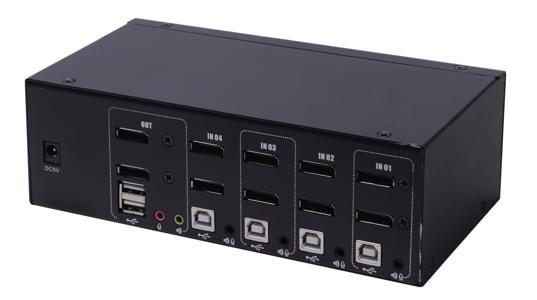

Type			AS-42DPA
Computer connections			4
Port selection			Front panel buttons/Hotkey
Connector	Control port	monitor	2 x DP Type A black Female
		keyboard	1 x USB Type A female
		mouse	1 x USB Type A female
		speaker	1 x Mini stereo jack female (green)
		microphone	1 x Mini stereo jack female (pink)
	Computer port	monitor	8 x DP Type A female (black)
		Keyboard & mouse	4 x USB Type B female (white)
		Speaker & microphone	4 x Mini stereo jack female (black)
	Power		1 x DC socket
Toggle switch	KVM switch button		4 x button
LED’s	Online		4 x red
	Selected		4 x green
Analog mode	Keyboard & mouse		USB
Maximum resolution video			4K @ 60HZ( 3840x2160 @60HZ)
Hotkey			CTL+CTL
Operating environment	Operating temperature		0-50 °C
	Storage temperature		-20-60 °C
	Humidity		0-80% RH , no condensation
Housing	House		metal
	Size		202 x 110 x 66mm
	Weight		0.76Kg

file version CN/EN Date download

AS-42DPA (4 ports Display Port KVM switch, Dual-monitor)
