16Port HDMI KVM Switch AS-9116HA-HDMI Rackmountable KVM Switch-Beijing Lanbao Tianhe Technology Co., Ltd

All products

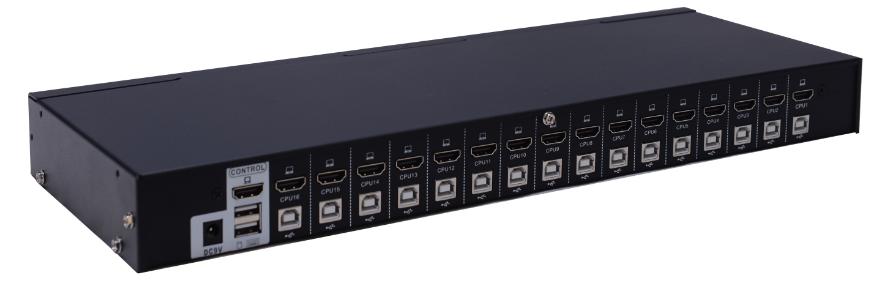

16Port HDMI KVM Switch AS-9116HA

•

● Single USB console control 16 HDMI interface computer and two additional USB device
● Supports USB TYPE A interface type keyboard and mouse device
● HDMI standard alone KVM resolution in Max: 4K@30Hz ;
● Switch the computer through the front panel buttons, keyboard hotkeys and screen menu (OSD)
● Connect to the controlled device for BIOS-level access without worrying about the risk of viruses and Trojans
● The controlled computer does not need to install any software and drivers, and the controlled computer directly recognizes KVM.
● Upgrade remote network control mode by extending IP board
● Support OSD to set user login mode and increase KVM login security requirements
● Both local and remote IP modes support high video resolution - support for 480i, 480p, 720p, 1080i and 1080p (1920 × 1200), 4K X 2K Ultra HD resolution
● Support widescreen resolution
● Support DDC communication to adapt to different graphics devices
● Auto scan function monitors all computer operations
● Support for cross-platform operations - Windows, Linux, Mac*, and Sun*
The computer mouse and mouse connection port is controlled by Keep Online technology to simulate the mouse and keyboard. The device is safe and stable, and the switching is fast without delay.

Function				16Ports
Computer Connection				16
Port Selection				OSD Menu, Front panel switches, Hot Key
Connector	Console Connector		Monitor	1 x HDMI Female
			Keyboard	1 x USB Type A Female
			Mouse	1 x USB Type A Female
	PC Connector		Monitor	16 x HDMI Female
			Mouse/Keyboard	16 x USB TYPE B Female
	Power Supply			1 x DC Jack
Toggle switch	Connection Port Selection			16 x keys
	KVM Switch Reset			1 x Semi-embedded keys
LED Instruction	Selected			16 x Green
	Online			16 x Red
Simulation Method	Keyboard & Mouse			USB
Max Resolution Video				4K@30HZ local
Scan interval				3、5、10、15、20、30、40、60 seconds（Default 3 Seconds）
Operating Environment		Operating temperature		0-50℃
		Storage temperature		-20-60℃
		Humidity		0-80%RH，No Condensation
Physical Properties		Housing		metal
		Dimensions(L x W x H )		432 x 155 x 44 mm
		Weight（kgs）		1.8KG

file version CN/EN Date download

16Port HDMI KVM Switch AS-9116HA
