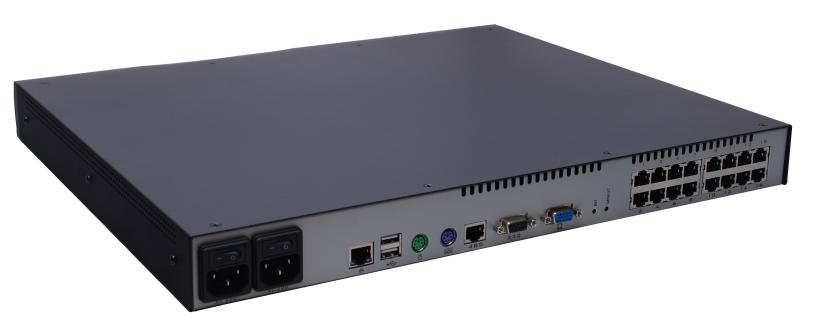

KMD3216 Rack Mountable IP KVM Matrix


1 local user, 2 Remote users Control Terminal 16-port Matrix Digital KVM Switch

Hardware:
● Supports One local user and 2 remote users;
● Server side supports: VGA/HDMI/DVI interface;
● High-density connection port - RJ-45 connection port up to 16 ports on Cat 5e/6 connection
● Built-in 1000 Mbps network adapter cards with IP function
● Support USB and RS-232(optional), 485(optional), VGA/DVI/HDMI connections
● Local console supports USB or PS.2 keyboard and mouse
● Support cross-platform server environment: Windows, Mac, Sun, Linux, etc. based serial devices
● High video resolution - local console video and remote video resolution up to 1920x1200@60Hz
● Up to 16 servers can be monitored at a single level, or up to 256 servers can be managed through cascade function
● The connection port of controlled computer keyboard and mouse are with keep online technology to simulate keyboard and mouse function; switch fast, device safe and stable.

Management:
● Provide up to 3000 groups of user accounts, users can be divided into 3 levels according to their permissions
● Support terminating online functions – administrators can terminate online working
● Support log generation and conditional query function of KVM device system
● Support firmware update
● Support information setting and storage function of connecting device ports and customization of device connection information
● Port sharing mode allows multiple users to access a server at the same time
● User rights and group management, users can be divided into super administrator, administrator and user
● Support permission settings, administrators can set operation rights and ports for different level users
● Embedded WEB management server makes management way fast and reliable.

Function

KMD3216

Computer Connection

Direct Connects

16

Maximum Connects

256

Port Selection

OSD MenuRemote IP







Connectors

Console Connector

Monitor

1 x VGA DB15  Blue Female

Keyboard

1 x USB Type A Female1 x PS2 purple Female

Mouse

1 x USB Type A Female1 x PS2 Green Female

PC Connector

Switch Module

16 x RJ45 port

Power

2 x DC Jack

IP Network Port

1 x RJ45 (2 Remote users)

232 control port

1 x DB89 (Optional)

485control port

1 x RJ45 (Optional)

Switch

KVM Reset

1 x Semi-embedded button

KVM factory reset

1 x Semi-embedded button

Remote control

24 x green LED

Analog Mode

Keyboard Mouse

USBPS2

Maximum resolution

1920 x 1200 @ 60HZ local & remote

Scanning interval

35101520304060secondsDefault 3 seconds

Operating environment

Operating temperature

0-50

Storage temperature

-20-60

Humidity

0-80%RHNo Condensation

Physical Properties

Housing

Metal

Size

440 x 350 x 44 mm

Weight

4.2KG
