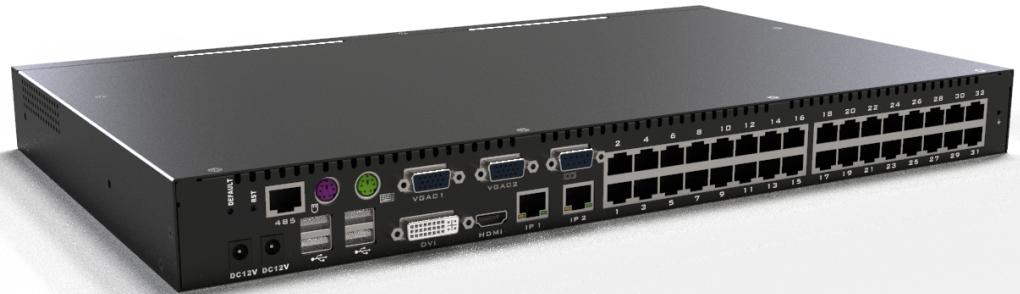

2, 4, 8 Control Terminal 32, 64Ports Matrix Digital KVM Switch
KMD-xx32VM
KMD-xx64VM Series

Matrix digital KVM switch is an intelligent equipment that provides IT administrators in large server rooms with efficient management and access control of multiple servers. The switch is an IP-based KVM control equipment that allows local and remote operators to monitor and access multiple servers from a single set of control terminals. The KVM over IP switch provides ultra-high video quality with resolutions up to 1920x1200 and can access USB-driven equipment through high-speed virtual media transmission.

Model	Configuration Description
KMD-3864VM	8 remote users, 3 local users, 64 controlled ports, dual power supply, 4 1000M Ethernet, local support VGA, HDMI, DVI video display
KMD-3464VM	4 remote users, 3 local users, 64 controlled ports, dual power supply, 4 1000M Ethernet, local support VGA, HDMI, DVI video display
KMD-3264VM	2 remote users, 3 local users, 64 controlled ports, dual power supply, 4 1000M Ethernet, local support VGA, HDMI, DVI video display
KMD-3432VM	4 remote users, 3 local users, 32 controlled ports, dual power supply, dual 1000M Ethernet, local support VGA, HDMI, DVI video display
KMD-3232VM	2 remote users, 3 local users, 32 controlled ports, dual power supply, dual 1000M Ethernet, local support VGA, HDMI, DVI video display
KMD-3416VM	4 remote users, 3 local users, 16 controlled ports, dual power supply, dual 1000M Ethernet, local support VGA, HDMI, DVI video display
KMD-3216VM	2 remote users, 3 local users, 16 controlled ports, dual power supply, dual 1000M Ethernet, local support VGA, HDMI, DVI video display
KMD-3208VM	2 remote users, 3 local users, 8 controlled ports, dual power supply, dual 1000M Ethernet, local support VGA, HDMI, DVI video display
KMT-251VM	USB interface virtual media KVM conversion module
KMT-232	232 serial interface KVM conversion module
KMT-550HM	HDMI + USB interface conversion module
KMT-550DM	DVI + USB interface conversion module

Hardware
● High density connection ports-RJ-45 connection ports and Cat 5e/6 online provide up to 64 ports
● Stand-alone channel that provides 2/4/8 sets of remote connections for KVM over IP access
● Built-in 4 sets of 1000 Mbps network adapter cards provide local area network redundancy or dual IP operation capability
● Supports PS/2, USB, VGA, DVI, HDMI and serial port (RS-232) connections
● The local control side supports USB/PS2 keyboard and mouse
● Supports cross-platform server environments: Windows, Mac, Sun, Linux-based serial port equipment
● High Video Resolution-Local Control Video and Remote Video Resolution Up to 1920x1200 @ 60Hz
● Up to 8, 16, 32, 64 servers can be monitored at a single level, or up to 1024 servers can be managed through a cascade of ports
● The keyboard and mouse connection port of the controlled computer adopts Keep Online technology to simulate the keyboard and mouse, so that the equipment is safe and stable, and the switching is rapid.
● Locally, three groups of users are provided for concurrent operation, six groups of USB interfaces, one group of PS2 keyboard and mouse interfaces, and two VGA output displays, one group of DVI video displays and one group of HDMI video display interfaces are provided.

Administration
● Provides up to 3000 groups of user accounts, and users can be divided into 3 levels according to their permissions.
● Supports Terminating Online-Administrators can terminate running connection jobs
● Supports log generation and conditional query for KVM equipment systems
● Supports firmware updates
● Connects equipment port information settings and storage functions, customizing equipment connection information
● Port sharing mode supports multiple users to access a single server
● After user rights and group management, users can be divided into super administrator, administrator and ordinary user levels.
● Supports permission setting, administrators can set different levels of user operation permissions and ports
● Embedded WEB management server, browser login management mode, fast and reliable

Functions				KMD-3X64VM
Number of computer connections	Direct			64
	Maximum cascade			1024
Port Selection				OSD menu, remote IP, shortcut hotkey
Connector		Control Port	Display	2 x VGA DB15 blue female head, 1xHDMI female head, 1xDVI white female head
			Keyboard	3 x USB Type A female head, 1 x PS2 purple female head
			Mouse	3 x USB Type A female, 1 x PS2 green female
		Computer port	Conversion Module	64 x RJ45 port
		Power Supply		2 x DC12V
		IP Network Interface		4 x RJ45（LED）
		232 serial port		2 x DB9
		485 Control Port		2 x RJ45
Switchover switch		KVM Reset		1 x semi-embedded key
		KVM Restore Factory Settings		1 x semi-embedded key
LED indicator		Computer Online Port		64 x green
		IP Module Network Port		4 x green, 4 x orange
Analog mode		Keyboard and mouse		USB、PS2
Maximum Resolution Video				1920 x 1200 @ 60HZ Local and Remote
Scan Interval				3, 5, 10, 15, 20, 30, 40, 60 seconds (default 3 seconds)
Operating environment		Operating temperature		0-50℃
		storage temperature		-20-60℃
		Humidity		0-80% RH, no coagulation
Body Attribute		Chassis		Metals
		Dimensions		440 x 350 x 88 mm
		Weight		6.2KG

Functions				KMD-3X32VM
Number of computer connections	Direct			32
	Maximum cascade			512
Port Selection				OSD menu, remote IP, shortcut hotkey
Connector		Control Port	Display	2 x VGA DB15 blue female head, 1xHDMI female head, 1xDVI white female head
			Keyboard	3 x USB Type A female head, 1 x PS2 purple female head
			Mouse	3 x USB Type A female, 1 x PS2 green female
		Computer port	Conversion Module	32 x RJ45 port
		Power Supply		2 x DC12V
		IP Network Interface		2 x RJ45 (LED)
		232 serial port		2 x DB9
		485 Control Port		2 x RJ45
Switchover switch		KVM Reset		1 x semi-embedded key
		KVM Restore Factory Settings		1 x semi-embedded key
LED indicator		Computer Online Port		32 x green
		IP Module Network Port		2 x green, 2 x orange
Analog mode		Keyboard and mouse		USB、PS2
Maximum Resolution Video				1920 x 1200 @ 60HZ Local and Remote
Scan Interval				3, 5, 10, 15, 20, 30, 40, 60 seconds (default 3 seconds)
Operating environment		Operating temperature		0-50℃
		storage temperature		-20-60℃
		Humidity		0-80% RH, no coagulation
Body Attribute		Chassis		Metals
		Dimensions		440 x 350 x 44 mm
		Weight		4.2KG

P.S: All dongles information, please check datasheet of KMD Series Dongle Specification.
