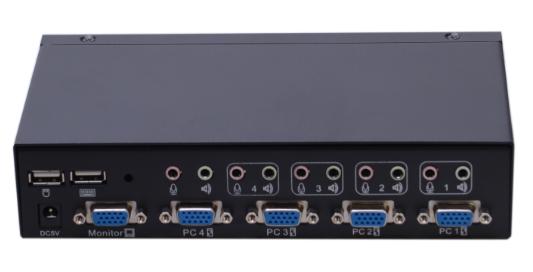

AS-41UA (Metal-Housing Desktop VGA/USB KVM Switch, 4ports)


AS-41UA, 4ports KVM SWITCH, can control 4 computers via a single console and allows users to switch among computers via buttons on the front panel of the switch or hot key configuration on the keyboard. It is the simplest and most convenient solution for multi-computers management. Stable capability& sturdy, durable and small design are the most important features for this series products.

● 4 port USB2.0 multiple video series KVM switch
● Single USB controls 4 sets of computers and peripherals USB
● Built-in USB2.0 hub, compatible with USB2.0 protocol specification
● The maximum supported resolution of VGA video is 1920*1080@60HZ (1080P )
● Provide keyboard hotkey switching shortcut function and device panel button two switching function selection
● Support multiple platforms for various operating systems
● BIOS level hardware connection, no need to install drivers and control software
● The front panel of the device is extended with a USB interface, which is convenient for users to connect peripheral devices such as a USB keyboard, a mouse, or a USB flash drive or a USB printer .
● Provide a variety of hotkey selection and setting functions, so that users can set their own hotkeys according to the situation.
● Automatically scans the connected computer

TYPE

AS-41UA

Computer connections

Connect directly



4

Port selection

Front panel switches/ hot key





LED’s

Selected

4

Online

4

Power

1





Console Ports

Monitor

1*HD15 female

Keyboard

1*USB female

Mouse

1*USB female

Audio

1* audio output



PC ports

4*HD15 female

4* audio input

Simulation

USB

Power

AC220V/5W

Video resolution

2048*1536( max ) ; DDC2B

Scan interval

5s

Operating temp.

-10˚C~50˚C

Storage temp.

-20˚C~60˚C

Housing

Metal

Weight

0.82kg

Dimension

132 x 92 x 43 mm
