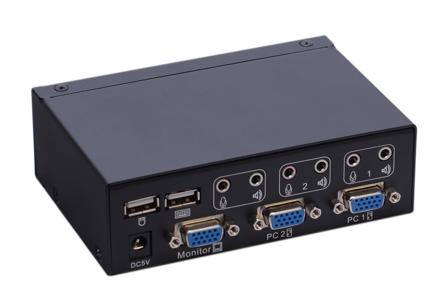

AS-21UA (Metal-Housing Desktop VGA/USB KVM Switch, 2ports )

•

contact

AS-21UA, 2ports KVM Switch, it can control 2 computers via a single console and allows users to switch between computers via buttons on the front panel of the switch or hot key configuration on the keyboard. It is the simplest and most convenient solution for multi-computers management. Stable capability& sturdy, durable and small design are the most important features for this series products.

● 2 port USB2.0 multiple video series KVM switch
● Single USB controls 2 sets of computers and peripherals USB
● Built-in USB2.0 hub, compatible with USB2.0 protocol specification
● The maximum supported resolution of VGA video is 1920*1080@60HZ (1080P )
● Provide keyboard hotkey switching shortcut function and device panel button two switching function selection
● Support multiple platforms for various operating systems
● BIOS level hardware connection, no need to install drivers and control software
● The front panel of the device is extended with a USB interface, which is convenient for users to connect peripheral devices such as a USB keyboard, a mouse, or a USB flash drive or a USB printer .
● Provide a variety of hotkey selection and setting functions, so that users can set their own hotkeys according to the situation.
● Automatically scans the connected computer

TYPE		AS-21UA
Computer connections	Connect directly	2
Port selection		Front panel switches/ hot key
LED’s	Selected	2
	Online	2
	Power	1
Console Ports	Monitor	1*HD15 female
	Keyboard	1*USB female
	Mouse	1*USB female
	Audio	1* audio output
PC ports		2*HD15 female
		2* audio input
Simulation		USB
Power		AC220V/5W
Video resolution		2048 x 1536 (Max); DDC2B
Scan interval		5s
Operating temp.		-10˚C~50˚C
Storage temp.		-20˚C~60˚C
Housing		Metal
Weight		0.57kg
Dimension		86 x 86 x 26.5 mm (LWH)
