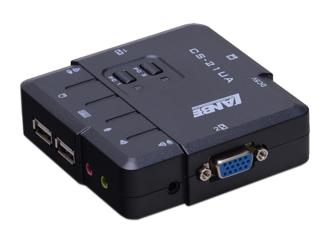

CS-21UA（USB &Audio KVM Switch, 2ports,Plastic housing）

•

contact

CS-21UA 2ports KVM SWITCH with plastic housing, it can control 2 computers via a single console and allows users to switch between computers via buttons on the front panel of the switch or hot key configuration on the keyboard. It is the simplest and most convenient solution for multi-computers management. Stable capability& sturdy, durable and small design are the most important features for this series products.

● One USB console controls 2ports computers; Simulation function of keyboard and mouse built-in;
● Easy installation , no software required
● Easy operation, computer selection via button on front panel or hotkey on keyboard; Non powered;
● OS support: Windows 2000, Windows XP, Windows, Vista, LINUX, Mac and Free BSD
● Auto-scan function to monitor computer operation;
● Hot plug-gable to add or remove computers without powering down.
● Attached with 2pcs VGA/USB/Audio Cable in 1.8m;

Type		CS-21UA
Computer Connections		2
CPU port Selection		Front panel switches/Hot key
Console Connector	Keyboard	1 x USB female
	Mouse	1 x USB female
	Monitor	1 x HDB-15 female
CPU Connection	Keyboard	2 x 6pin mini-DIN female(PS.2)
	Mouse	2x 6pin mini-DIN female(PS.2)
	Monitor	2x HD15 male
LEDs	Online (red)	2
	Selected (orange)	2
Video Resolution		2048 x 1536 (Max)
Power		DC5V, 400mA (for optional)
Operating Temperature		-10˚C~50˚C
Storage Temperature		-20˚C~60˚C
Housing		Plastic
Weight		0.57 kg
Dimensions(L x W x H )		86 x 86 x 26.5 mm
