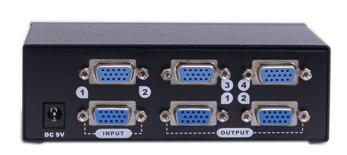

MVS204 ( 2 Input 4 output Splitter Switch)


MVS204 video switch and splitter is a kind of device which can switch 2 input video signals and split into to 4 output video signals.

TYEP

MVS-204





Video Input / Output Signal

Signal Type

VGA

Connection Type

VGA HD15F

Minimum input level positive

0.5Vp-p

Maximum input level positive

1.0Vp-p

I/O Impedance

75Ω





Video

Maximum Resolution

1920*1080

Horizontal Frequency

30-100KHz

Vertical Frequency

40-120Hz

Bandwidth

250MHz

Maximum Transmission

Distance

65 meters

Resolution 1024*768@60HZ





Specification

Power Input Voltage

AC100~240V

Device Input Power

DC 9V/300-1000mA

SizeL*W*H

92mm*130mm*41mm

Weight

400g

Operation

Panel Button

Shell

Metal
