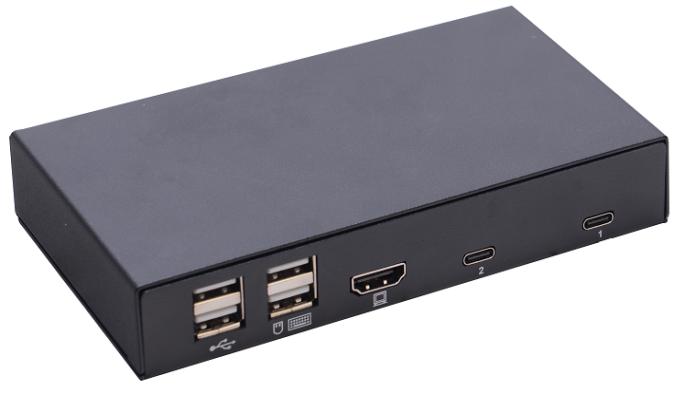

AS-21CH 2Ports Type-C 4k@60Hz KVM Switch

•

contact

As a KVM switcher, the 2-port desktop KVM series switcher allows users to access two PCS as USB hubs from a single USB keyboard, USB mouse and HDMI monitor control. It allows each computer (one computer at a time) to access the connected peripherals switcher installation is simple and fast, plug the cable into the correct port can control the display connection for HDMI interface, support the maximum resolution of 4K@60HZ This product use without software Settings, no installation procedures and no compatibility problems Desktop-style compact design, metal shell, easy to install and save desktop space, is the ideal choice for SOHO office and other multimedia applications

● Provides two TYPEC interfaces for connecting to the controlled device
● The controller provides a set of dual USB keyboard and mouse ports to control two PCS and USB peripherals
● Provides a set of dual USB2.0 ports that can be connected to USB peripherals such as USB flash disks and USB printers
● Built-in USB2.0 hub, compatible with USB2.0 protocol specifications
● HDMI video supports a maximum resolution of 4K@60HZ
● Provides two switching functions: keyboard hot-keys and device panel keys
● Supports multiple platforms and operating systems
● BIOS hardware connection, no driver or control software is required

Functions			Product Model: AS-21CH
Port Selection			Button & Hot-keys
Connector	Control Port	Display	1xHDMI female
		Keyboard	1 x USB Type A female
		Mouse	1 x USB Type A female
	Controlled end port		2 x Type C female
	USB2.0 Extension Interface		2 x USB Type A female
Toggle switch	Port Switch Key		1 x touch key
LED indicator	Computer Select Port		2 x LED
	IP Network Port		1 x green, 1 x yellow
Analog mode	Keyboard and mouse		USB 2.0
Maximum Resolution Video			4K @ 60HZ
Switch Response Time			0.2 s
Operating environment	Operating temperature		0-50 ℃
	Storage Temperature		-20-60 ℃
	Humidity		0-80% RH, no coagulation
Body Attribute	Chassis		Metals
	Dimensions		150x88x26mm
	Weight		350g

file version CN/EN Date download

AS-21CH 2Ports Type-C 4k@60Hz KVM Switch
