Model No.

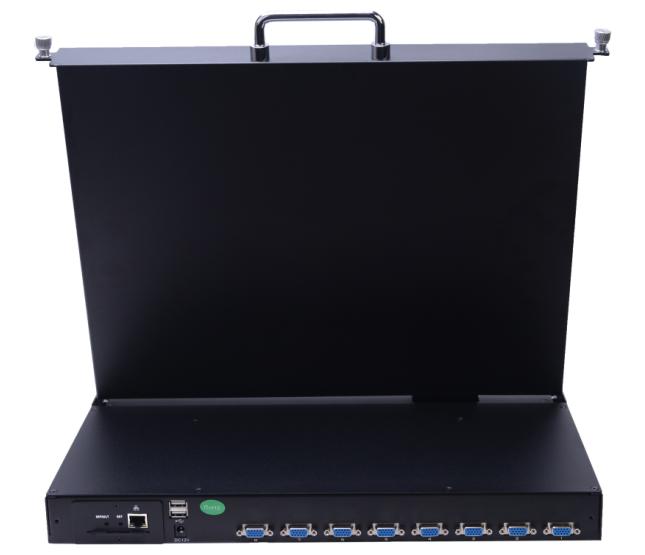

AS-7108ULR-I

Number of computer connections

Direct

8

Maximum cascade

128

Switch Mode

OSD menus, panel keys, hotkeys,  IP remote control(optional)

OSD Toggle Default

Ctrl + Ctrl

Hotkey Switch Default

Scroll + Scroll + Numbers (01-16)

Connector

Control Port

Display

17 "Widescreen LED Display

Keyboard

1 x USB Type A female head

Mouse

1 x USB Type A female head

Extension Interface

1 x USB Type A Female Head (Front Extended Keyboard, Mouse Interface)

Computer port

Monitor, keyboard and mouse

8 x VGA DB15 Blue Female Head

Power Supply

1 x DC jack

Power

Supply Specifications

DC 12V4A

Network Port

1 x RJ45(optional)

Switchover switch

Connection

Port  Selection

KVM Operation Panel Numeric Keys

KVM Reset

KVM Operation Panel Function Keys

IP Module Reset

1 x semi-embedded key

IP Module Default

1 x semi-embedded key

LED indicator

Computer Select Port

Dual-digit digital tube display LED indicator lamp

Computer Online Port

8 x Red

IP Network

1 x Green, 1 x Orange

Analog mode

Keyboard and mouse

USB, PS2

Mouse

Touch-pad Mouse

Keyboard

101-key chocolate ultra-thin keyboard

Maximum Resolution Video

1600 x 900 @ 60HZ Local&Remote

Scan Interval

3, 5, 10, 15, 20, 30, 40, 60 seconds (default 3 seconds)

Operating environment

Operating temperature

0-50 ℃

Storage Temperature

-20-60 ℃

Humidity

0-80% RH, no coagulation

Body Attribute

Chassis

Metals

Product Size

544 x 445 x 45mm

Appearance Color

Black

Weight

14.9KG
