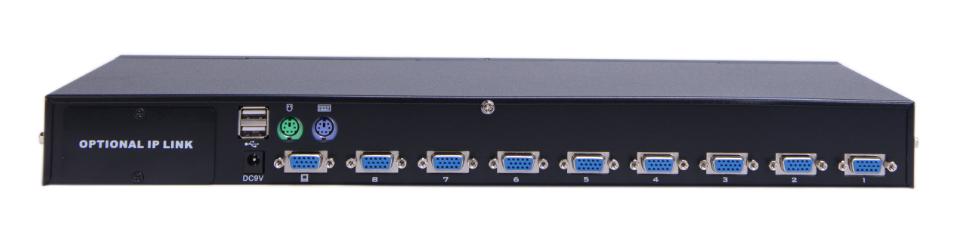

AS-9108DU (VGA Rack-Mountable KVM Switch, 8ports)


AS-9108DU is a USB, PS/2 Rack-Mountable KVM Switch that allows administrators to access 8pcs different computers via one set of USB keyboard, mouse; cascading function supported
● One console controls 8 computers
● Be compatible with USB / PS/2 keyboard and mouse in console and USB keyboard and mouse in computer.
● Support Cascade function;
● Computer selection via front panel switches, hot key and OSD
● It can be updated as remote control by IP card
● Support OSD to set user login mode and increase KVM login security requirements
● Support high video resolution in local and remote IP mode - Support 480i, 480p, 720p, 1080i and 1080p (1920 × 1200)
● Support wide screen resolution
● Extended IP remote control mode supports 1000M Ethernet control transmission requirements
● Support DDC communication, to adapt to a variety of graphics devices
● The Auto Scan function monitors all computer operations
● Support cross-platform operation - Windows, Linux, Mac and Sun, etc...

Function

8 port

Model

AS-9108DU

Computer Connections

Direct

8

Cascade(Max)

128

CPU Port Selection

OSD Menu, Front Panel Hot-Key, Hot-key, Remote Control IP (Optional)







Connector

Console Connectors

Video

1 x VGA DB15 Female Blue

Keyboard

1 x USB Type A Female, 1 x PS2 Female (Purple)

Mouse

1 x USB Type A Female, 1 x PS2 Female (Green)

Computer Connectors

Video/Keyboard/Mouse

8 x VGA DB15 Female (Blue)

Power

1 x DC

Network Port

1 x RJ45(Optional)

Key Switch

Connection Port Selection

8 x Button

KVM Reset

1 x Semi-embedded keys

IP Module Reset

1 x Semi-embedded keys

IP Module Default

1 x Semi-embedded keys

LEDs

Computer Selection Port

8 x Green

On Line

8 x Red

IP Module Network Interface

1 x Green, 1 x Orange

Analog Mode

Keyboard, Mouse

USB, PS2

Video resolution (Max)

1920 x 1200 @ 60HZ Local & Remote

Scan time interval

3, 5, 10, 15, 20, 30, 40, 60s (3s by default)

Operating Environment

Operating temperature

-10˚C~50˚C

Storage temperature

-20˚C~60˚C

Humidity

0-80%RH, No Condensation

Physical Properties

Housing

Metal

Size

432 x 155 x 44 mm

Weight

1.82KG
