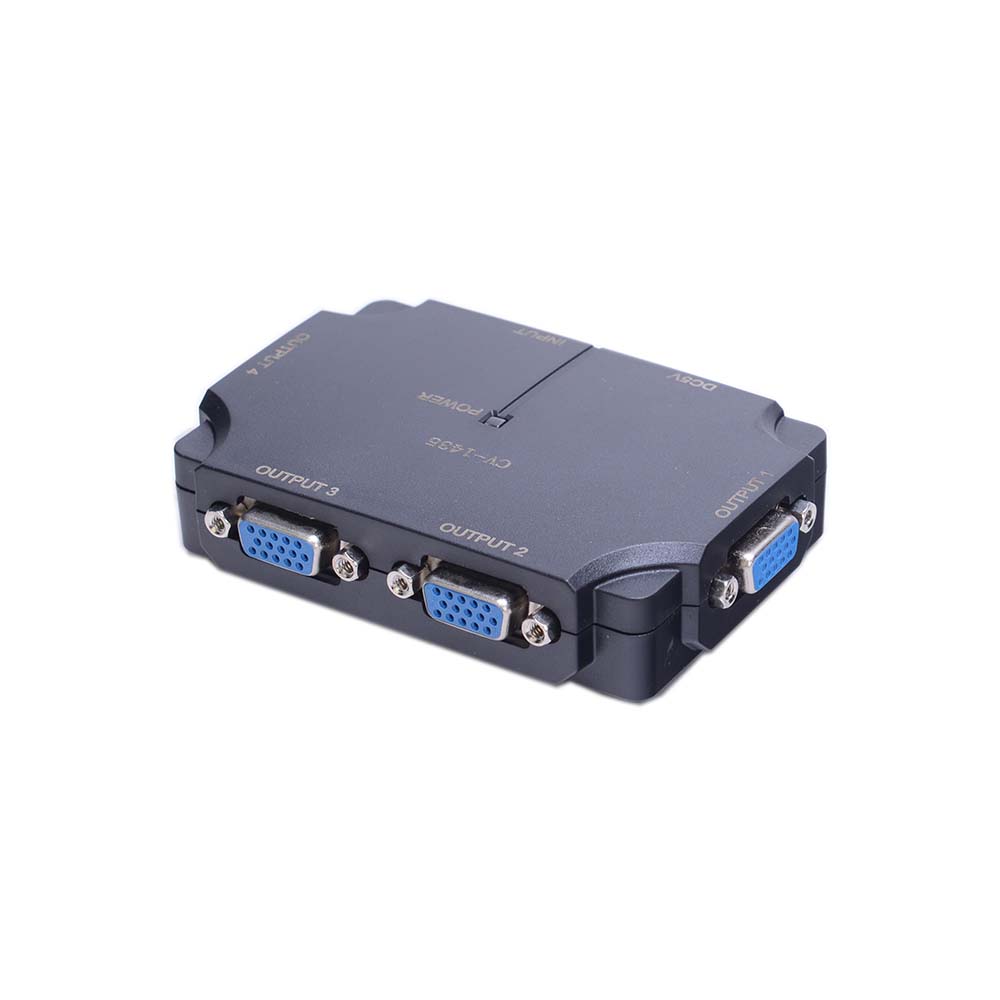

CV-1435（VGA Splitter, 4ports）

•

contact

Introduction
Specifications
Topology Map
Downloads

Plastic housing VGA splitter CV-1435 (video splitter) is the equipment to distribute one video signal to 4 VGA output equipment synchronously, to ensure different displays show the same image. The equipment without additional power adapter, with USB cable power supply; Advantages: high bandwidth, resolution and reliability, As well as the long-distance signal transmission, the max long-distance can reach 65 meters. it could be used in: securities business, computer exhibition hall, public broadcasting and education training center etc...

Type		CV-1435
Bandwidth		350MHz
Signal	Product Type	1 into 4
	Connector Type	INPUT HD15M; OUTPUT HD15F
	Min input voltage	0.5Vp-p
	Max input voltage	1.0Vp-p
	I/O impedance	75Ω
	Max Resolution	2048*1536
	Horizontal frequency	30-120KHz
	Vertical frequency	40-120Hz
Pertinence	Dimension (mm)	8612224 mm
Pertinence	Power	USB Power Supply (5V 500mA)
House		Plastic
