Features

AS-22HUS

Computer connections

2

Port selection

Front panel buttons/Hot-key

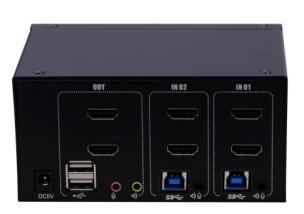

Connector

Control port

monitor

1 x HDMI Type A black Female

keyboard

1 x USB Type A female

mouse

1 x USB Type A female

speaker

1 x Mini stereo jack female(green)

microphone

1 x Mini stereo jack female(pink)

USB3.0

2 x USB3.0 Type A Blue Female

Computer port

monitor

4 x HDMI Type A female (black)

keyboard and mouse

2 x USB Type B female (white)

speaker &

microphone

2 x Mini stereo jack female (black)

power

1 x DC socket

Toggle switch

KVM switch button

2 x button

LED’s

online

2 x red

Selected

2 x green

Analog mode

Keyboard and mouse

USB

Maximum resolution video

4K@60HZ(3840x2160 @60HZ)

Hot-key

CTL+CTL

Operating environment

Operating temperature

0-50 °C

Storage temperature

-20-60 °C

Humidity

0-80% RH , no condensation

Housing

House

metal

Size

132 x 92 x 66mm

Weight

0.58Kg
