Type

8 Port

Model

AS-9108DA

Computer Connection

Direct Connects

8

CPU Port Selection

OSD Menu, Front panel buttons, Hot Key

Connectors

Console Connector

Monitor

1xDVI Type A Female

Keyboard

1 x USB Type A Female

Mouse

1 x USB Type A Female

Expansion Interface

1 x USB Type A Female (Front expansion Keyboard, Mouse Interface)

Microphone

8 x Mini Stereo Female (Pink)

Audio Speaker

8 x Mini Stereo Female (Green)

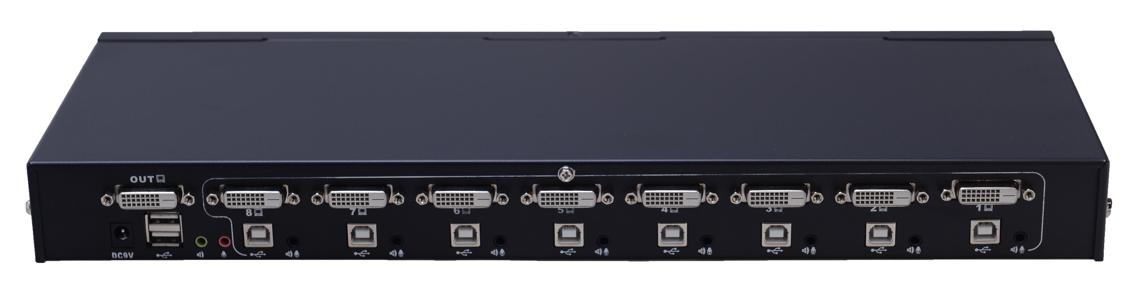

PC Connector

Mouse/Keyboard

8 x USB Type B Female

Monitor

8 x DVI-D

Mixed Audio Connector

8 x Mini Stereo Female (Black)

Power

1 x DC Jack

Toggle Switch

Connection Port Selection

KVM Operation Panel Digital keys

KVM Reset

1 x semi-embedded keys

LED’s

Selected

8 x Green

Online

8 x Red

Analog Mode

Keyboard/Mouse

USB, PS/2

Resolution (Max)

1920 x 1200 @ 60HZ Local & Remote

Scan time interval

3, 5, 10, 15, 20, 30, 40, 60s (3s by default)

Operating Environment

Operating temperature

-10-50˚C

Storage temperature

-20-60˚C

Humidity

0-80%RH, No Condensation

Physical Properties

Housing

Metal

Size

432 x 155 x 44 mm

Weight

1.82KG
