KH-101 HDMI KVM Extender Datasheet


HDMI KVM extender: (kh-101) HDMI KVM extender can extend the HD HDMI video signal, USB keyboard and mouse signal through the network cable to achieve lossless transmission of HD video signal. This equipment is an active electronic equipment, which can amplify and shape the signal, improve and ensure the signal bandwidth. It has the characteristics of high bandwidth, high resolution, high reliability and long signal extension distance. Kh-101 can extend 100 meters. And support up to 1080p video format. It is suitable for stock market, computer exhibition venue, film and television, video communication company, education and training center, etc.


Product Pictures:

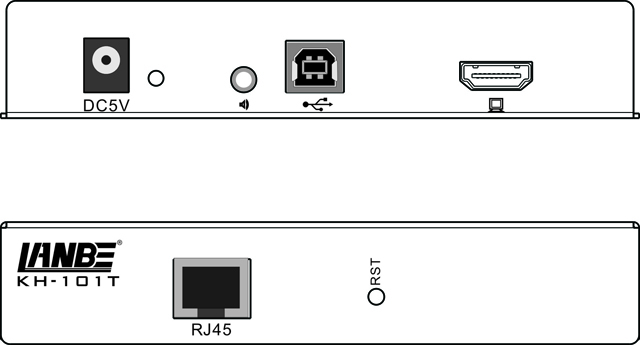

KH-101T(Transmitter)

1.Power Input   2.Audio input   3.USB interface for Computer   4.HDMI input interface 5.Transmitter network cable interface   6.Reset button


KH-101R(Receiver)

1.Power interface  2.Audio input interface   3. USB Keyboard & mouse   4.HDMI Display Interface    5.Receiving network cable interface 6. Reset Button 7. PS.2 keyboard & mouse


Connection diagram:


Product

HDMI KVM Extender

Transmission Distance

100m

Signal

Model No.:

KH-101

Video Input

HDMI

Optimal Resolution

1920*1080

Max Resolution

1920*1080

Supported Formats

VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200

DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p

Max Transmission Distance

100m

Connector

Video

HDMI-A

Keyboard, Mouse

USB-B/ USB-A/PS/2

Audio

3.54mm

Panel

Power LED’s

 GEREEN LED

Indication Output

Video(Red LED)  Keyboard, Mouse(Green LED)

Specifications

Dimensions (mm)

136mm*76mm*26mm

Power Supply

5V 2000mA



Environment

Working Temp

0~50℃

Storage Temp

-20~60℃

Humidity

0 - 80% RH, No Condensation

Housing

Metal
