Function

8 Ports

Computer Connection

8

Port Selection

OSD Menu, Front panel switches, Hot Key

Connector

Console Connector

Monitor

1 x HDMI Female

Keyboard

1 x USB Type A Female

Mouse

1 x USB Type A Female

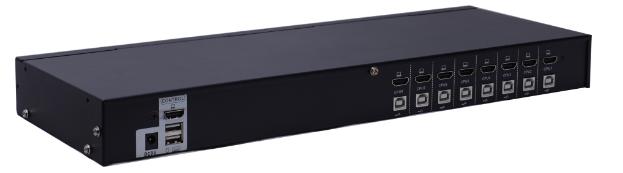

PC Connector

Monitor

8 x HDMI Female

Mouse/Keyboard

8 x USB TYPE B Female

Power Supply

1 x DC Jack

Toggle switch

Connection Port Selection

8 x keys

KVM Switch Reset

1 x Semi-embedded keys

LED Instruction

Selected

8 x Green

Online

8 x Red

Simulation Method

Keyboard & Mouse

USB

Max Resolution Video

4K@30HZ local

Scan interval

3、5、10、15、20、30、40、60 seconds（Default 3 Seconds）

Operating Environment

Operating temperature

0-50℃

Storage temperature

-20-60℃

Humidity

0-80%RH，No Condensation

Physical Properties

Housing

metal

Dimensions(L x W x H )

432 x 155 x 44 mm

Weight（kgs）

1.8KG
