Function

4 port

Model

AS-9104DU

Computer Connections

Direct

4

Cascade(Max)

64

CPU Port Selection

OSD Menu, Front Panel Hot-Key, Hot-key, Remote Control IP (Optional)

Connector

Console Connectors

Video

1 x VGA DB15 Female Blue

Keyboard

1 x USB Type A Female, 1 x PS2 Female (Purple)

Mouse

1 x USB Type A Female, 1 x PS2 Female (Green)

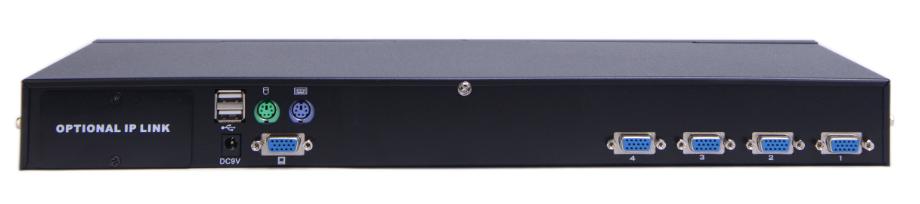

Computer Connectors

Video/Keyboard/Mouse

4 x VGA DB15 Female (Blue)

Power

1 x DC

Network Port

1 x RJ45(Optional)

Key Switch

Connection Port Selection

4 x Button

KVM Reset

1 x Semi-embedded keys

IP Module Reset

1 x Semi-embedded keys

IP Module Default

1 x Semi-embedded keys

LEDs

Computer Selection Port

4 x Green

On Line

4 x Red

IP Module Network Interface

1 x Green, 1 x Orange

Analog Mode

Keyboard, Mouse

USB, PS2

Video resolution (Max)

1920 x 1200 @ 60HZ Local & Remote

Scan time interval

3, 5, 10, 15, 20, 30, 40, 60s (3s by default)

Operating Environment

Operating temperature

-10˚C~50˚C

Storage temperature

-20˚C~60˚C

Humidity

0-80%RH, No Condensation

Physical Properties

Housing

Metal

Size

432 x 155 x 44 mm

Weight

1.82KG
